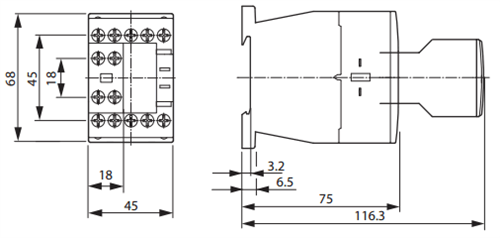

DILA-31 (24vDC)

Base DILA-31 control relays have four-poles rated to 10 amps, (UL/CSA general purpose). Two and four-pole auxiliary contact blocks may be added to increase the relay’s capacity to a maximum of eight poles. Various NO and NC configurations are available, including late break and early make. Auxiliary contacts are also rated to 10 amps. A comprehensive range of accessories from suppressors and voltage indicators to amplifiers and timing modules make DIL A relays a great choice for applications demanding maximum flexibility.
